StarTech.com 10G Network Card - 2x 10G Open SFP+ Multimode LC Fiber Connector - Intel 82599 Chip - Gigabit Ethernet Card (PEX20000SFPI) - network adapter - PCIe 2.0 x8

SKU PEX20000SFPI
Produktbeskrivelse:StarTech.com 10G Network Card - 2x 10G Open SFP+ Multimode LC Fiber Connector - Intel 82599 Chip - Gigabit Ethernet Card (PEX20000SFPI) - netværksadapter - PCIe 2.0 x8
Enhedstype:Netværksadapter
Model:Indstikskort - lavprofil
Grænseflade (bus) type:PCI Express 2.0 x8
Dimensioner (B x D x H):1.8 cm x 13.5 cm x 12 cm
Vægt:102 g
Kabeltype:Ethernet 10GBase-LR, Ethernet 10GBase-SR, Ethernet 10GBase-LRM
På lager(12)
  • Specifikationer
  • Beskrivelse
Generelt
Enhedstype:Netværksadapter
Model:Indstikskort - lavprofil
Grænseflade (bus) type:PCI Express 2.0 x8
Netværk
Forbindelsesteknologi:Kablet
Kabeltype:Ethernet 10GBase-LR, Ethernet 10GBase-SR, Ethernet 10GBase-LRM
Dataforbindelsesprotokol:10 Gigabit Ethernet
Dataoverførselshastighed:10 Gbps
Præstation:Videresendelsespræstation (fuld duplex): 20 Gbps
Kapacitet:Jumbo-rammestørrelse: 15000
Egenskaber:Komplet duplex ydeevne, Jumbo Frames support
Overensstemmelsesstandarder:IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae
Processor / Hukommelse
Processor:Intel 82599
Ekspansion / Konnektivitet
Interface:2 - SFP+
Diverse
Udstyr inkluderet:Simpelt beslag
Overensstemmelsesstandarder:FCC, RoHS
Farve:Sort
Programmer / Systemkrav
OS nødvendig:Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bit), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 - 4.11.x LTS versioner, Microsoft Windows Server 2019 (64-bit)
Mål og vægt
Bredde:1.8 cm
Dybde:13.5 cm
Højde:12 cm
Vægt:102 g
Producentgaranti
Service & Support:Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur:5 °C
Maks. driftstemperatur:50 °C
Fugtighedsgrad ved brug:20 - 80 % (ikke-kondenserende)
Oplysninger om kompatibilitet
Designet for:P/N: 455883B21ST, BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ET10GSFP, EXSFP10GELRS, EXSFP10GESRS, J9150AST, J9151AST, J9152AST, JD094BST, MASFP10GBLR, MASFP10GBSR, SFP10GBBXDST, SFP10GBBXUST, SFP10GBERST, SFP10GBLRMST, SFP10GBLRST, SFP10GBSRST, SFP10GBZRST, SFP10GERST, SFP10GLRMST, SFP10GLRSST, SFP10GLRST, SFP10GLRSTTA, SFP10GSRSST, SFP10GSRST, SFP10GSRSTTA, SFP10GSRXST, TB31PCIEX16
vis mere

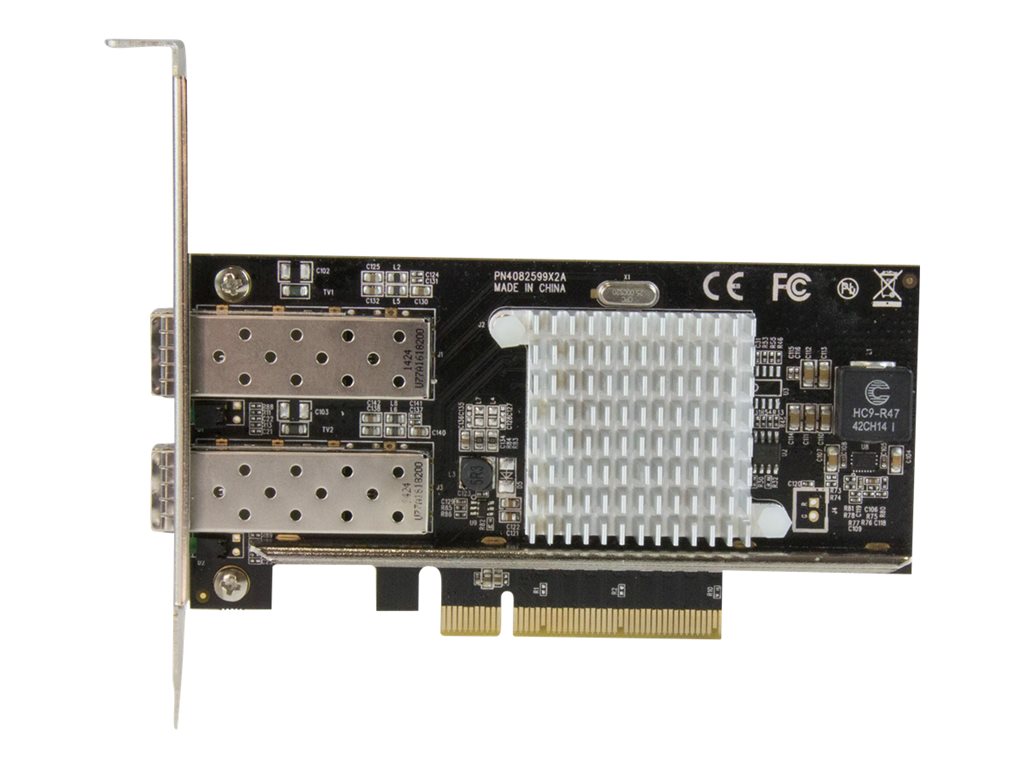

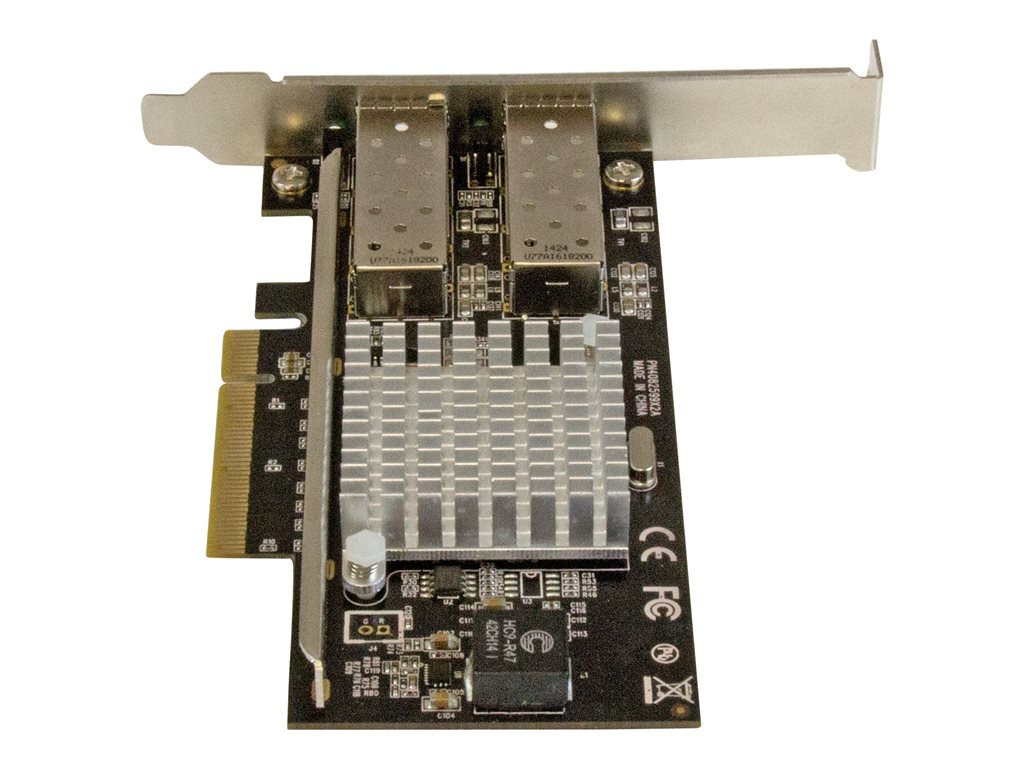

Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation - using the SFP+ transceiver of your choice. Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.
Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.
The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.
The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com provides a dependable solution for linking telecom and data communications equipment, such as routers and switches.
The 10 Gigabit network card features the Intel 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.




De tekniske detaljer kommer fra 3. part. edgemo tager forbehold for fejl.
