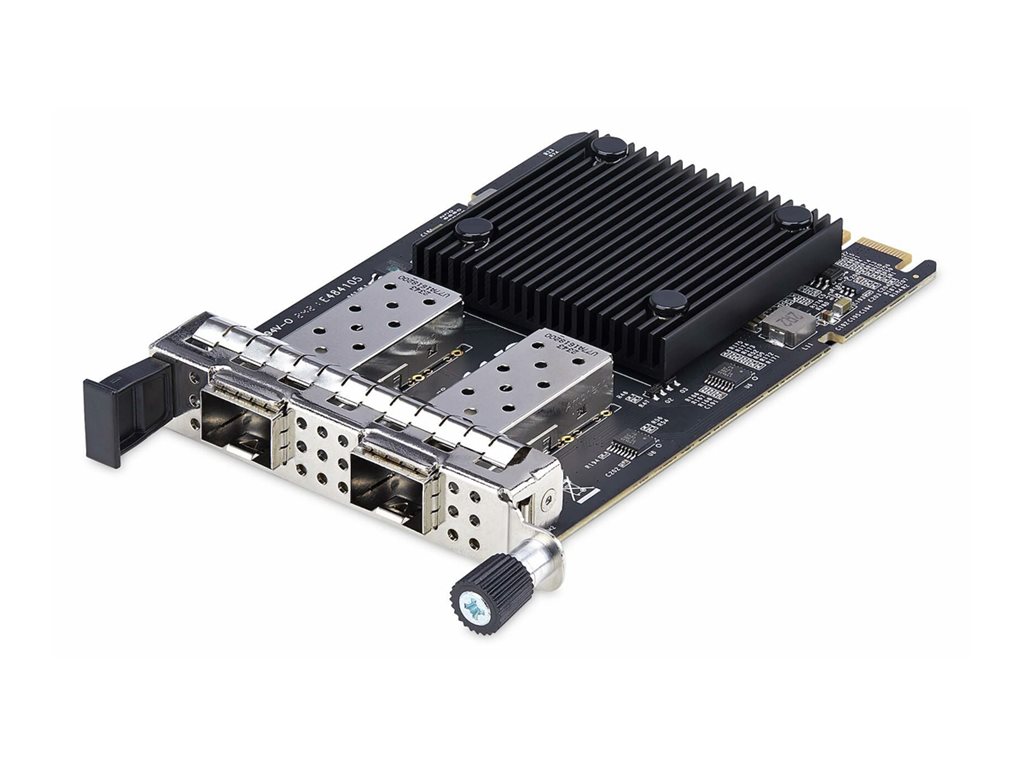

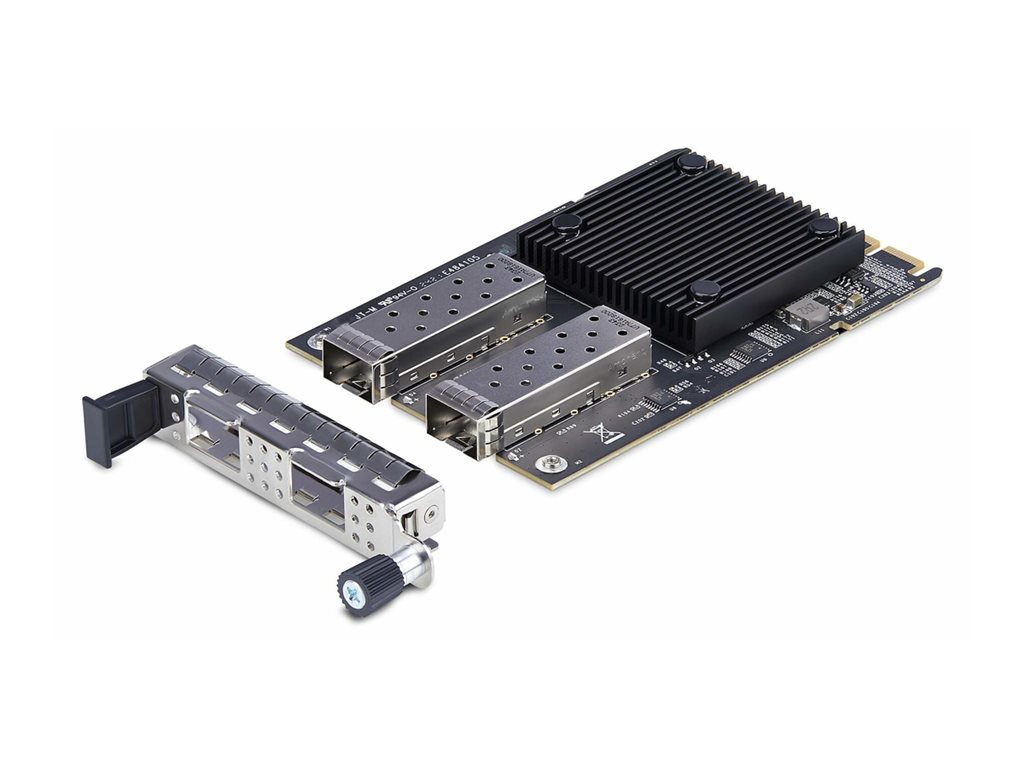

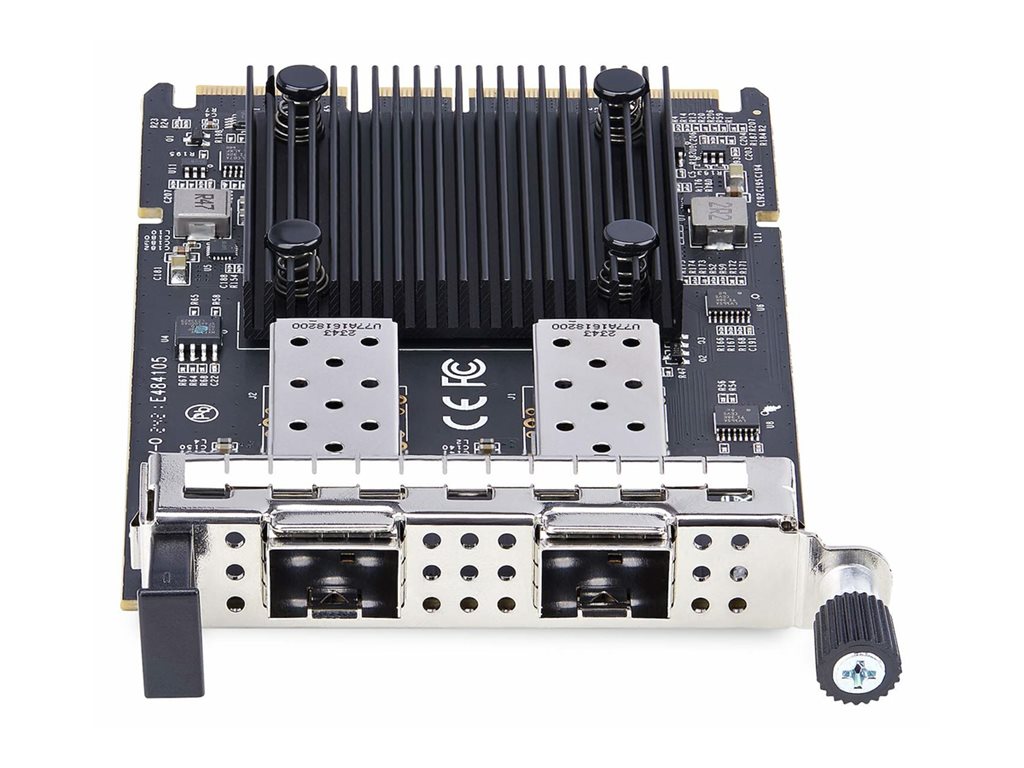

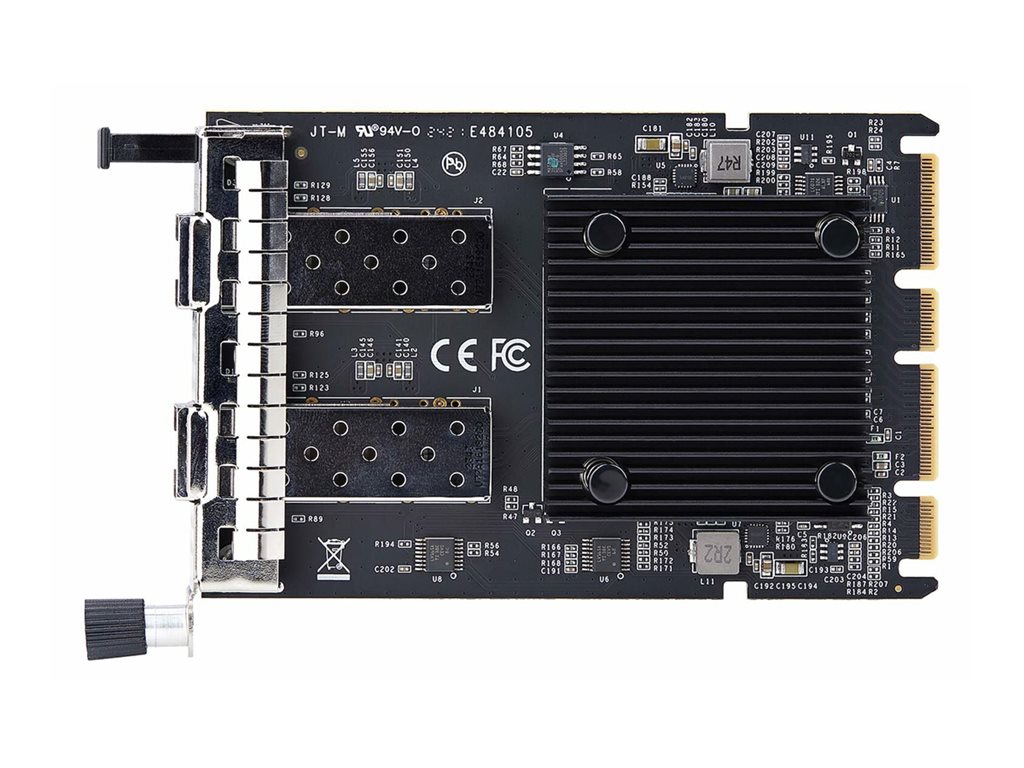

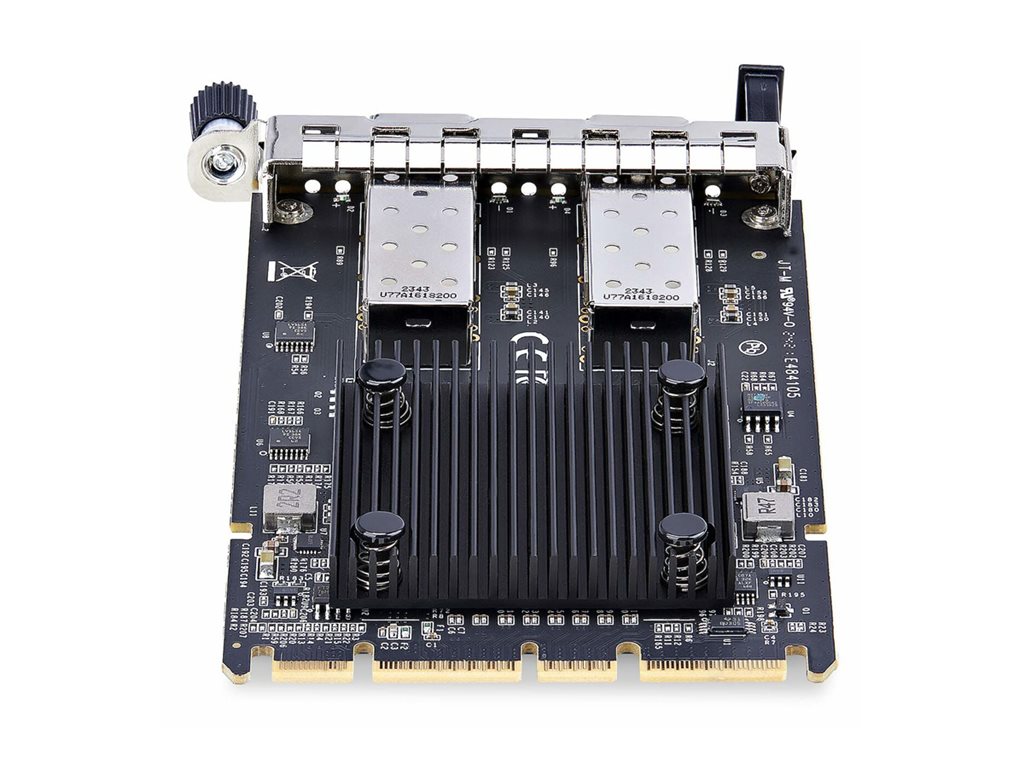

Printere & POSStarTech.com - network adapter - OCP 3.0 - 10 Gigabit SFP+ x 2
SKU O1210I-NETWORK-CARD
| Produktbeskrivelse: | StarTech.com - netværksadapter - OCP 3.0 - 10 Gigabit SFP+ x 2 |
| Enhedstype: | Netværksadapter |
| Model: | Indstikskort |
| Grænseflade (bus) type: | Open Compute Project mezzanine (OCP) 3.0 |
| PCI-specifikationsrevision: | PCIe 3.0, PCIe 2.1, PCIe 2.0 |
| Porte: | 10 Gigabit SFP+ x 2 |
| Dimensioner (B x D x H): | 1.5 cm x 13.2 cm x 8.5 cm |
- Specifikationer
- Beskrivelse
| Generelt | |
| Enhedstype: | Netværksadapter |
| Model: | Indstikskort |
| Grænseflade (bus) type: | Open Compute Project mezzanine (OCP) 3.0 |
| PCI-specifikationsrevision: | PCIe 3.0, PCIe 2.1, PCIe 2.0 |
| Netværk | |
| Porte: | 10 Gigabit SFP+ x 2 |
| Forbindelsesteknologi: | Kablet |
| Kabeltype: | Ethernet 1000Base-EX, Ethernet 1000Base-LX, Ethernet 1000Base-SX, Ethernet 1000Base-T, Ethernet 10GBase-CR, Ethernet 10GBase-LR, Ethernet 10GBase-SR, Ethernet 10GBase-T |
| Dataforbindelsesprotokol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Dataoverførselshastighed: | 10 Gbps |
| Kapacitet: | Jumbo-rammestørrelse: 9000 |
| Statusindikatorer: | Link/aktivitet/hastighed |
| Egenskaber: | Hot swap-bar, PXE-boot, VLAN-understøttet, QoS, Q-i-Q tunnelering, brotilstand, Link Aggregation, PTP, WOL, komplet duplex ydeevne, promiskuøs tilstand, VMDq, SR-IOV, DDP, DPDK, Enhanced NVO, GENEVE support, NVGRE, VxLAN-GPE with NSH, busdrevet |
| Overensstemmelsesstandarder: | OCP 3.0, IEEE 802.3, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad, IEEE 1588-2008, SFF-TA-1002 |
| Processor / Hukommelse | |
| Processor: | Intel X710-BM2 |
| Ekspansion / Konnektivitet | |
| Interface: | 1 x 10Gb Ethernet - SFP+ |
| Diverse | |
| Overensstemmelsesstandarder: | WEEE, RoHS |
| Farve: | Sort |
| Programmer / Systemkrav | |
| OS nødvendig: | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 2.6.x eller nyere, kun Linux LTS-versioner |
| Mål og vægt | |
| Bredde: | 1.5 cm |
| Dybde: | 13.2 cm |
| Højde: | 8.5 cm |
| Vægt: | 104 g |
| Mål & vægt (forsendelse) | |
| Bredde ved forsendelse: | 3 cm |
| Dybde ved forsendelse: | 17 cm |
| Højde ved forsendelse: | 14.2 cm |
| Vægt ved forsendelse: | 106 g |
| Producentgaranti | |
| Service & Support: | Begrænset garanti - 2 år |
| Miljømæssige parametre | |
| Min. driftstemperatur: | 0 °C |
| Maks. driftstemperatur: | 60 °C |
| Fugtighedsgrad ved brug: | 5 - 90% RH |
The StarTech.com network adapter is a high-performance solution designed to meet the needs of demanding network environments. With dual 10 Gigabit SFP+ ports, it offers superior connectivity and bandwidth management. This adapter is built to perform reliably across a broad range of operational conditions, thanks to its wide operating temperature and humidity range. It supports advanced networking features such as Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), and various Ethernet standards, making it a versatile choice for any setup. Additionally, its compliance with RoHS and WEEE standards reflects a commitment to environmental sustainability. Whether upgrading an existing system or setting up a new network, this network adapter provides the features and reliability needed to support complex network architectures and demanding applications.
- Dual 10 Gigabit SFP+ ports for high-speed network connections
- Operates across a wide range of temperatures and humidity levels
- Includes advanced features like QoS and SR-IOV for improved network efficiency
- Supports a broad array of Ethernet standards and data link protocols
- Compliant with RoHS and WEEE for environmental sustainability
De tekniske detaljer kommer fra 3. part. edgemo tager forbehold for fejl.
