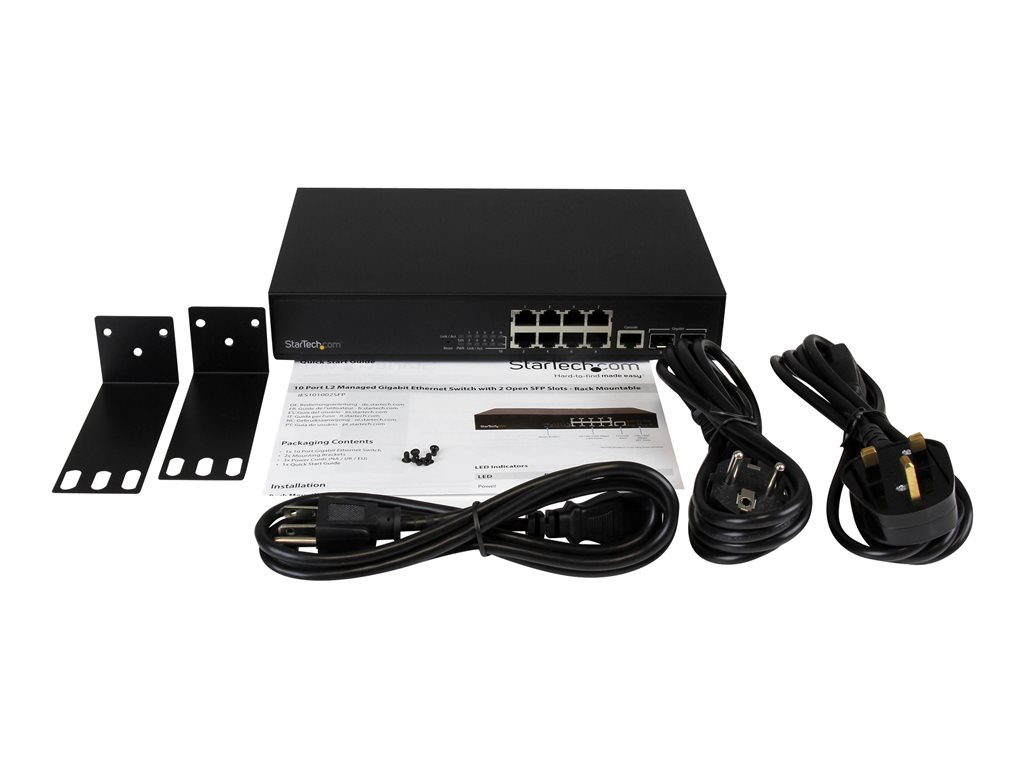

StarTech.com - switch - 10 ports - Managed - rack-mountable
SKU IES101002SFP
Produktbeskrivelse: | StarTech.com - switch - 10 porte - Administreret - monterbar på stativ |
Enhedstype: | Switch - 10 porte - Administreret |
Pakningstype: | Monterbar på stativ 1U |
Undertype: | Gigabit Ethernet |
Porte: | 8 x 10/100/1000 |
Præstation: | Videresendelsespræstation (fuld duplex): 2 Gbps |
Jumborammesupport: | 9.6KB |
- Specifikationer
- Beskrivelse
Generelt | |
Enhedstype: | Switch - 10 porte - Administreret |
Pakningstype: | Monterbar på stativ 1U |
Undertype: | Gigabit Ethernet |
Porte: | 8 x 10/100/1000 |
Præstation: | Videresendelsespræstation (fuld duplex): 2 Gbps |
Jumborammesupport: | 9.6KB |
Protokol til fjernadministration: | SNMP |
Egenskaber: | Fuld dupleksmodus, link opsamlings-trunking, mærket VLAN, STP support, NAC, Energy Efficient Ethernet, datatransport, QoS, 802.1x autentificering, RSTP support, 4 MB pakkebuffer, halv dupleksmodus, auto-uplink (auto MDI/MDI-X), gem og send, MIB |
Overensstemmelsesstandarder: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w |
Statusindikatorer: | Link/aktivitet, strøm, system |
Ekspansion / Konnektivitet | |

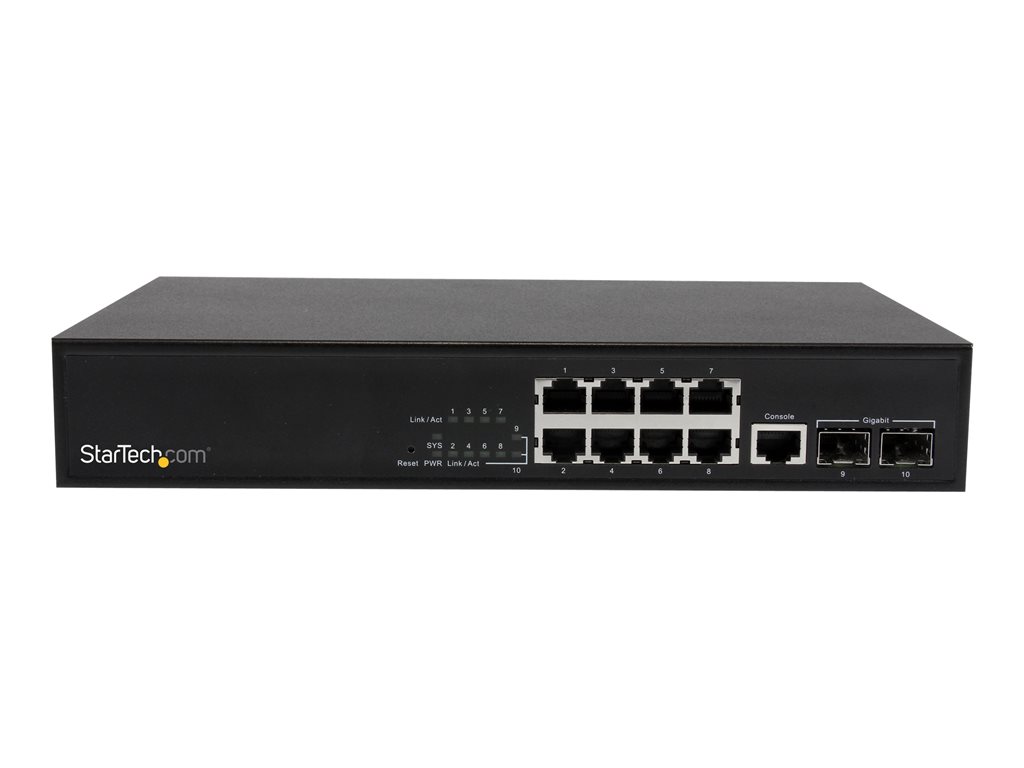

Interface: | 8 x 100Base-TX RJ-45 ¦ 1 x konsol RJ-45 |
Ekspansionsåbninger: | 2 (total) / 2 (fri) x SFP (mini-GBIC) |
Effekt | |
Strømenhed: | Ekstern strømforsyning |

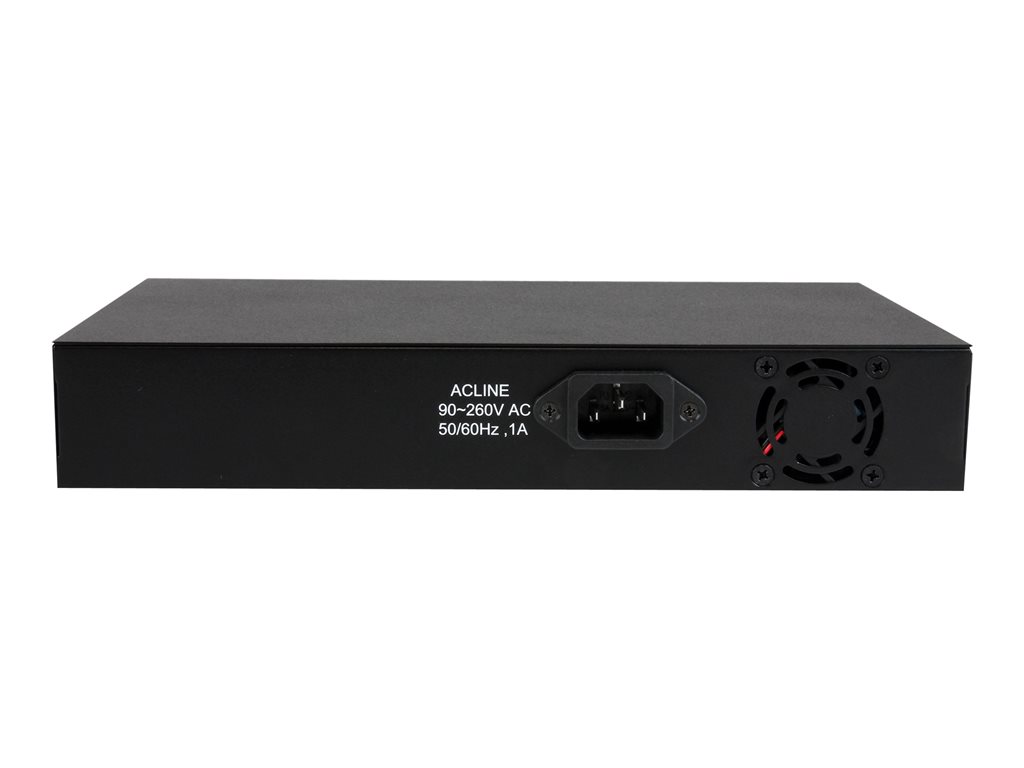

Nødvendig spænding: | AC 90 - 260 V |
Strømforbrug ved drift: | 14 Watt |
Diverse | |
Farve: | Sort |
Udstyr inkluderet: | Monteringsbøjler |
Overensstemmelsesstandarder: | UL, FCC, RoHS |
Lokalisering: | Europa, Nordamerika, United Kingdom |
Mål og vægt | |
Bredde: | 26.3 cm |
Dybde: | 16 cm |
Højde: | 4.4 cm |
Vægt: | 1.5 kg |
Producentgaranti | |
Service & Support: | Begrænset garanti - 2 år |
Miljømæssige parametre | |
Min. driftstemperatur: | 0 °C |
Maks. driftstemperatur: | 40 °C |
Fugtighedsgrad ved brug: | 10 - 90 % (ikke-kondenserende) |
Min. lagertemperatur: | -20 °C |
Maks. Opbevaringstemperatur: | 90 °C |
Lagerfugtighedsgrad: | 10 - 90 % (ikke-kondenserende) |
Oplysninger om kompatibilitet | |
Designet for: | P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM, ST12MHDLAN, ST12MHDLAN4K, ST12MHDLAN4R, ST12MHDLANRX, ST12MHDLANU, ST12MHDLANUR |
Scale your network and connect up to 10 different Gigabit Ethernet devices, including 8x RJ45 + 2x fiber optic connections using the SFPs of your choice. The IES101002SFP 10-port Ethernet switch delivers flexibility and control of your network by letting you connect a combination of RJ45 and fiber Ethernet devices. Plus, with Layer 2 management capabilities you can customize your settings to achieve optimal network performance, offering improved efficiency and reliability over typical Layer 1 and unmanaged network switches.
This versatile switch adapts to your network fiber connection and distance needs to offer flexible configuration via 2 open SFP slots, and you can choose your preferred as required. Plus, you can integrate fiber devices and cables into your network infrastructure, which can help to eliminate bandwidth, latency, and electronic interference issues.
To avoid the nuisance and added costs of different and additional switch types, this clever switch also offers 8 RJ45 Ethernet ports, giving you two effective interfaces for connecting both fiber and copper connections to just a single network device.
The scalable switch offers Layer 2 management capabilities, which lets you control packet traffic on a busy network, and in turn provides enhanced efficiency and stability of networked applications. For even more flexibility and control, the IES101002SFP offers essential features such as support for jumbo frames, link aggregation, VLAN tagging, and web or console-based command lines, as well as rackmount installation brackets.
This versatile switch adapts to your network fiber connection and distance needs to offer flexible configuration via 2 open SFP slots, and you can choose your preferred as required. Plus, you can integrate fiber devices and cables into your network infrastructure, which can help to eliminate bandwidth, latency, and electronic interference issues.
To avoid the nuisance and added costs of different and additional switch types, this clever switch also offers 8 RJ45 Ethernet ports, giving you two effective interfaces for connecting both fiber and copper connections to just a single network device.
The scalable switch offers Layer 2 management capabilities, which lets you control packet traffic on a busy network, and in turn provides enhanced efficiency and stability of networked applications. For even more flexibility and control, the IES101002SFP offers essential features such as support for jumbo frames, link aggregation, VLAN tagging, and web or console-based command lines, as well as rackmount installation brackets.
De tekniske detaljer kommer fra 3. part. edgemo tager forbehold for fejl.
