StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - SATA to IDE Converter - HDD Docking Station (SAT2IDEADP) - storage controller - ATA-133 - SATA

SKU SAT2IDEADP

Produktbeskrivelse:	StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - SATA to IDE Converter - HDD Docking Station (SAT2IDEADP) - lagringskontrol - ATA-133 - SATA
Enhedstype:	Lagringskontrol - intern
Bustype:	SATA
Harddiskens formfaktorkompatibilitet:	2.5", 3.5"
Interface:	ATA-133
Dataoverførselshastighed:	133 MBps
Understøttede enheder:	Harddisk

På lager(5)

Specifikationer
Beskrivelse
Tilbehør

Generelt
Enhedstype:	Lagringskontrol - intern
Harddiskens formfaktorkompatibilitet:	2.5", 3.5"
Host Bus:	SATA

Controller for lagring
Interface:	ATA-133
Dataoverførselshastighed:	133 MBps
Understøttede enheder:	Harddisk
Antal kanaler:	1

Ekspansion / Konnektivitet

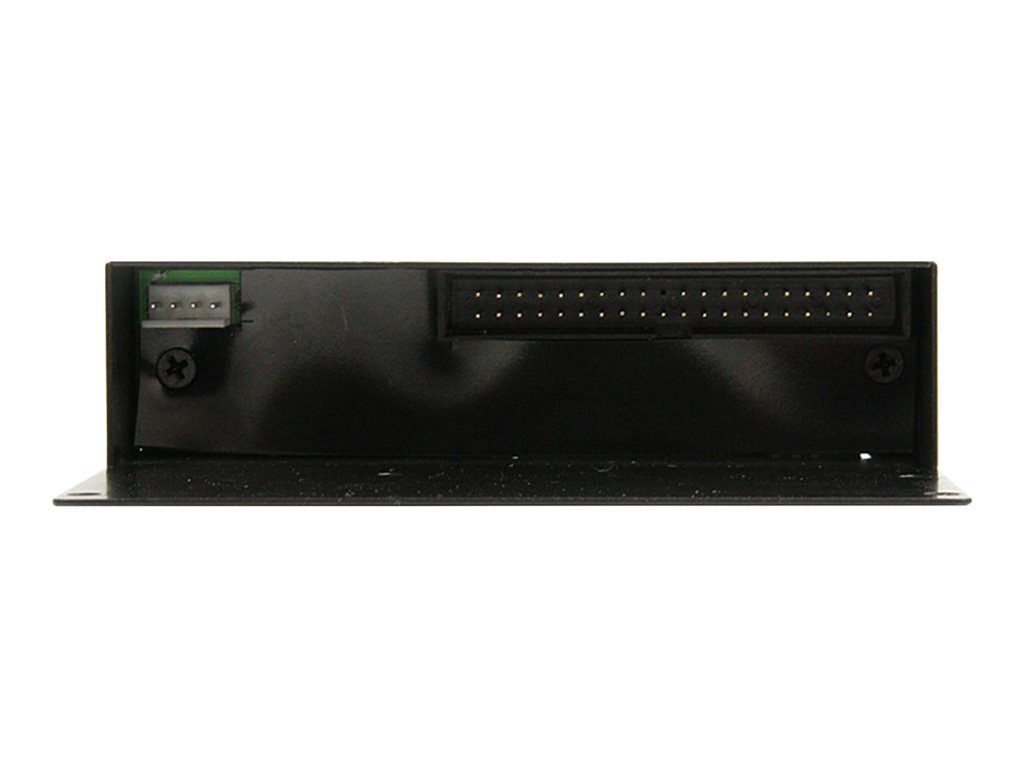

Interface:	1 x ATA-133 - 40-PIN IDC

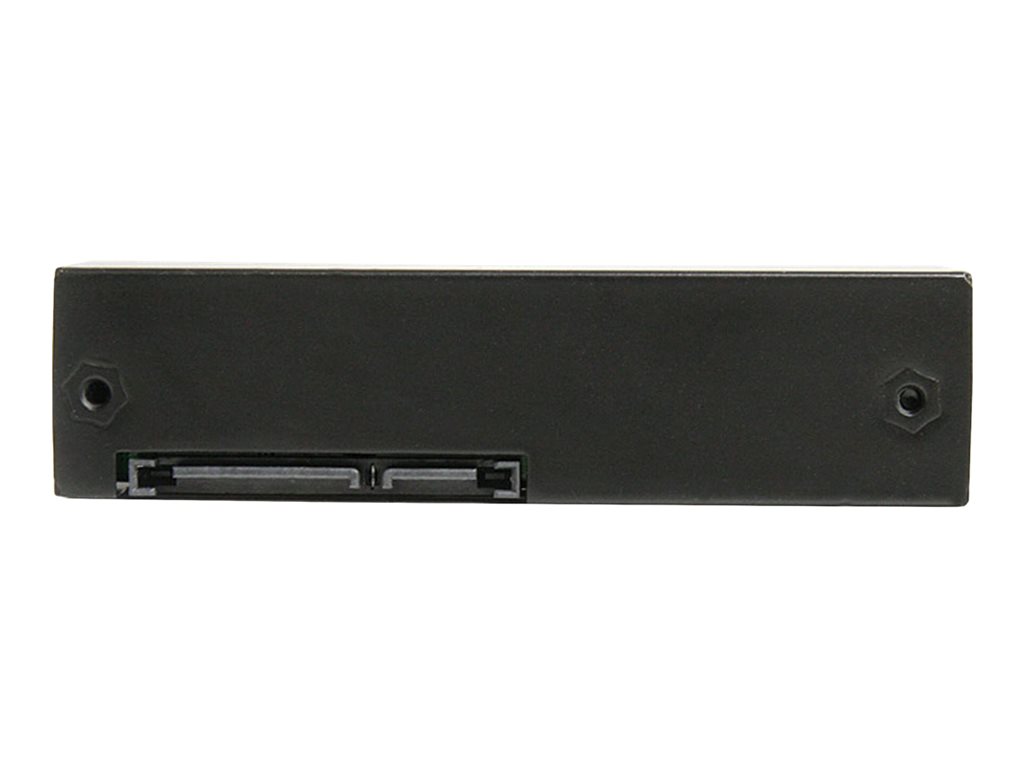

Tilslutninger:	1 lager - Serial ATA-150 - 7 pin Serial ATA

Diverse
Overensstemmelsesstandarder:	FCC, RoHS

Producentgaranti
Service & Support:	Begrænset garanti - 2 år ¦ Teknisk understøttelse - livstid

Mål og vægt
Bredde:	7.8 cm
Dybde:	10.1 cm
Højde:	2.6 cm
Vægt:	104 g

Miljømæssige parametre
Min. driftstemperatur:	5 °C
Maks. driftstemperatur:	80 °C
Fugtighedsgrad ved brug:	8 - 90%

Oplysninger om kompatibilitet
Designet for:	P/N: SATDOCK2REU3, SATDOCK4U3RE, SATDOCK5U3ER, SATDOCKU3S, SATDUP11, SATDUP11IMG, SATERASER4, SATSASDUPE11, SDOCK2ERU33, SDOCK2U313R, SDOCK2U33, SDOCK2U33EB, SDOCK2U33RE, SDOCK2U33V, SDOCK4U313, SDOCK4U33, SDOCKU313, SDOCKU313E, SDOCKU33BV, SDOCKU33EBV, SDOCKU33EF, SDOCKU33HW, SU2DUPERA11, UNIDOCKU33

vis mere

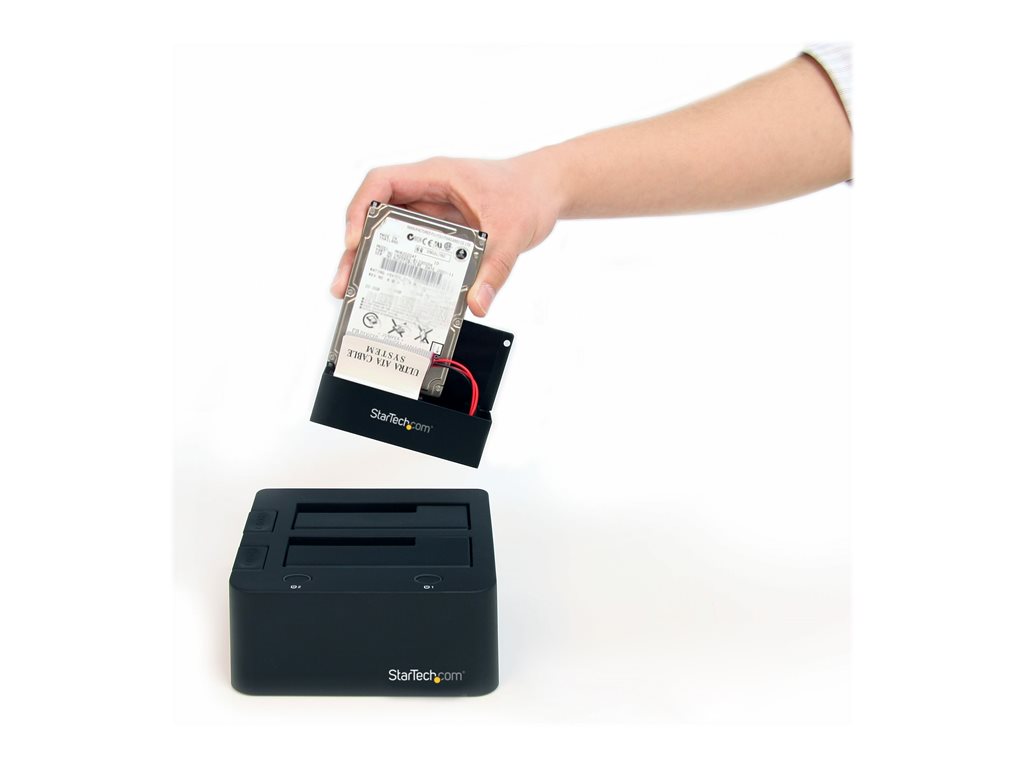

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station. The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.
