StarTech.com Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - switch - 10 ports - Managed
SKU IES101GP2SFW
Produktbeskrivelse: | StarTech.com Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - switch - 10 porte - Administreret |
Enhedstype: | Switch - 10 porte - Administreret |
Undertype: | Gigabit Ethernet |
Porte: | 8 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE): | PoE+ |
PoE-budget: | 200 W |
Præstation: | Datatransferhastighed: 2 Gbps |
- Specifikationer
- Beskrivelse
Generelt | |
Enhedstype: | Switch - 10 porte - Administreret |
Pakningstype: | Væg-monterbar, DIN monterbar på skinne |
Undertype: | Gigabit Ethernet |
Porte: | 8 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE): | PoE+ |
PoE-budget: | 200 W |
Præstation: | Datatransferhastighed: 2 Gbps |
Jumborammesupport: | 9KB |
Routingprotokol: | MLD, IGMP |
Protokol til fjernadministration: | HTTP |
Egenskaber: | Layer 2 switching, til vægmontering, IPv6 understøttet, fuld dupleksmodus, ICMP, 802.1x autentificering, TFTP support, 6KV ESD Protector, 6KV EFT-beskytter, mærket VLAN, datatransport |
Overensstemmelsesstandarder: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at |
Statusindikatorer: | Strøm |
Ekspansion / Konnektivitet | |
Interface: | 8 x 1000Base-TX RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-TX SFP ¦ 1 x terminalblok |
Diverse | |
Farve: | Sort |
Udstyr inkluderet: | 4 x skruer, påsætningsnåle, låsenåle, 4 spændeskiver, 4 magneter, DIN-skinnemonteringssæt, 8 RJ45 støvhætter, 2 SFP-støvhætter |
MTBF (forventet tid mellem fejl): | >100,000 timer |
Overensstemmelsesstandarder: | IP30, RoHS, RCM, WEEE, FCC |
Mål og vægt | |
Bredde: | 14.8 cm |
Dybde: | 13.4 cm |
Højde: | 2.5 cm |
Vægt: | 496 g |
Producentgaranti | |
Service & Support: | Begrænset garanti - 2 år |
Miljømæssige parametre | |
Min. driftstemperatur: | -40 °C |
Maks. driftstemperatur: | 75 °C |
Fugtighedsgrad ved brug: | 5 - 95 % (ikke-kondenserende) |
Oplysninger om kompatibilitet | |
Designet for: | P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM |
Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.

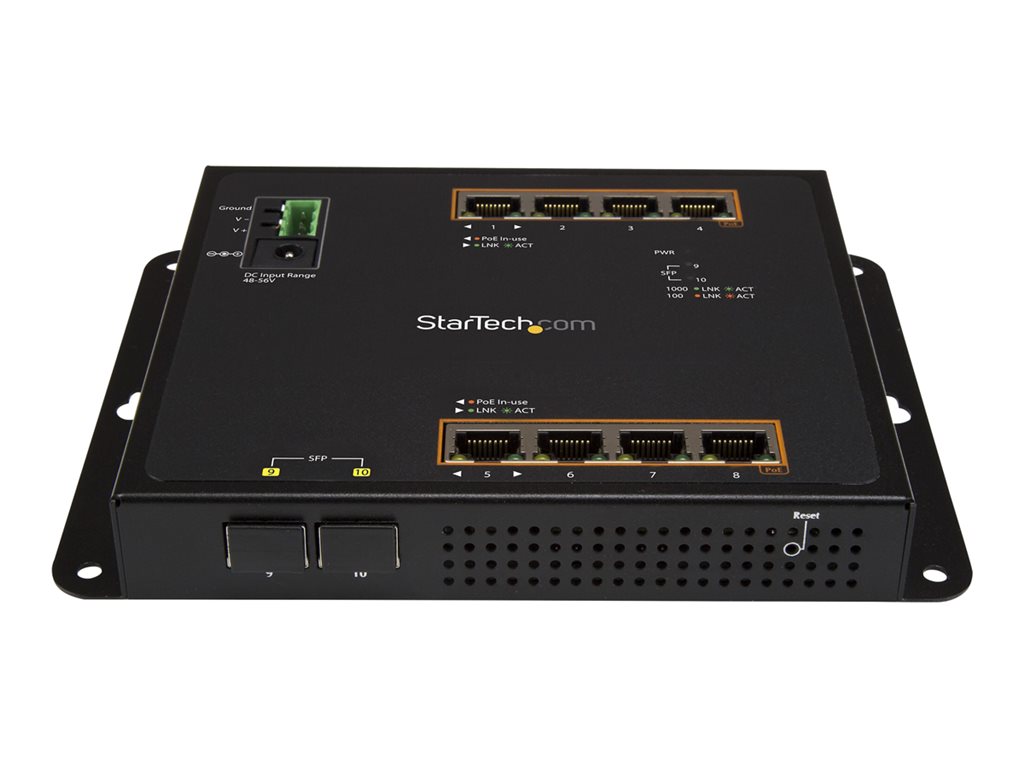

This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).

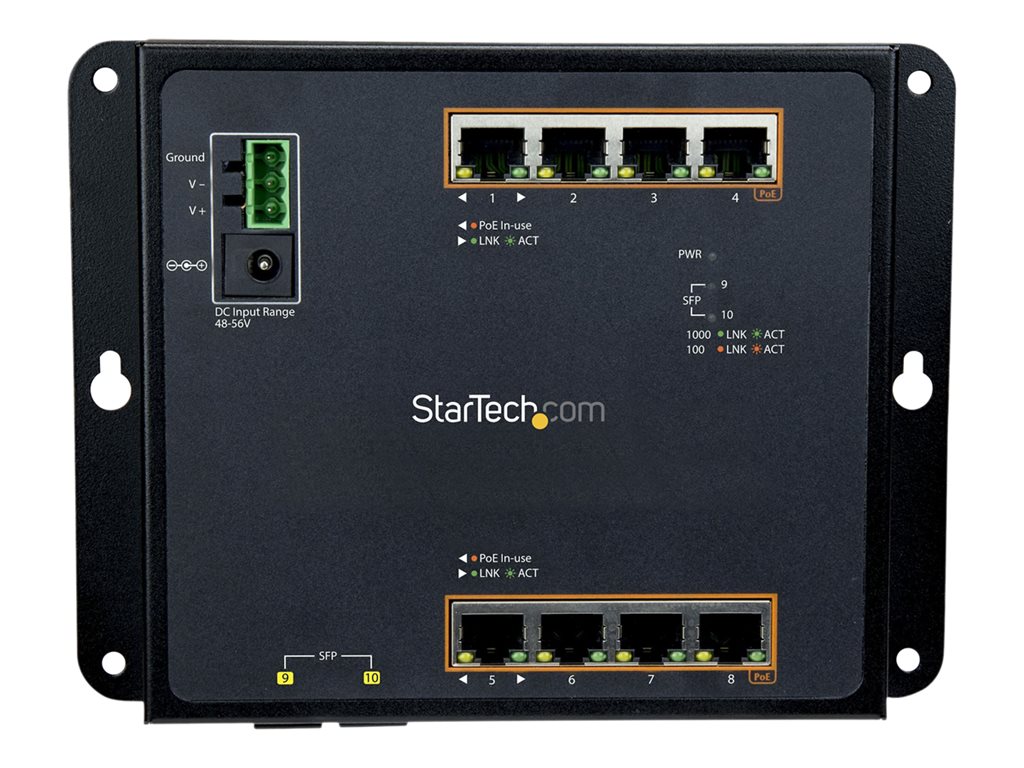

Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
