ASUS TUF GAMING B460M-PLUS - motherboard - micro ATX - LGA1200 Socket - B460
SKU 90MB1450-M0EAY0
Produktbeskrivelse: | ASUS TUF GAMING B460M-PLUS - bundkort - micro-ATX - LGA1200 sokkel - B460 |
Produkttype: | Bundkort - micro-ATX |
Chipsættype: | Intel B460 |
Processor-socket: | 1 x LGA1200 sokkel |
Kompatible processorer: | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (understøtter 10. Generation Intel Core / Pentium Gold / Celeron) |
Max RAM-størrelse: | 128 GB |
RAM understøttet: | 4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet |
- Specifikationer
- Beskrivelse
Generelt | |
Produkttype: | Bundkort - micro-ATX |
Chipsættype: | Intel B460 |
Processor-socket: | LGA1200 sokkel |
Max antal processorer: | 1 |
Kompatible processorer: | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (understøtter 10. Generation Intel Core / Pentium Gold / Celeron) |
Understøttet RAM | |
Maks. størrelse: | 128 GB |
Teknologi: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
Understøttet RAM-integritetskon: | Ikke-ECC |
Registreret eller buffer: | Ikke bufferet |
Egenskaber: | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-kanaler) |
Audio codec: | Realtek ALCS1200A |
Overensstemmelsesstandarder: | High Definition Audio, DTS Custom |
LAN | |
Netværk controller: | Intel I219V |
Netværks interfaces: | Gigabit Ethernet |
Ekspansion / Konnektivitet | |
Ekspansionsåbninger: | 1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4-modus) ¦ 1 x PCIe 3.0 x1 |
Grænseflade (lagring): | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 ¦ PCIe 3.0 -stikforbindelser: 1 x M.2 |
RAID-egenskaber: | Intel Rapid Storage Technology |

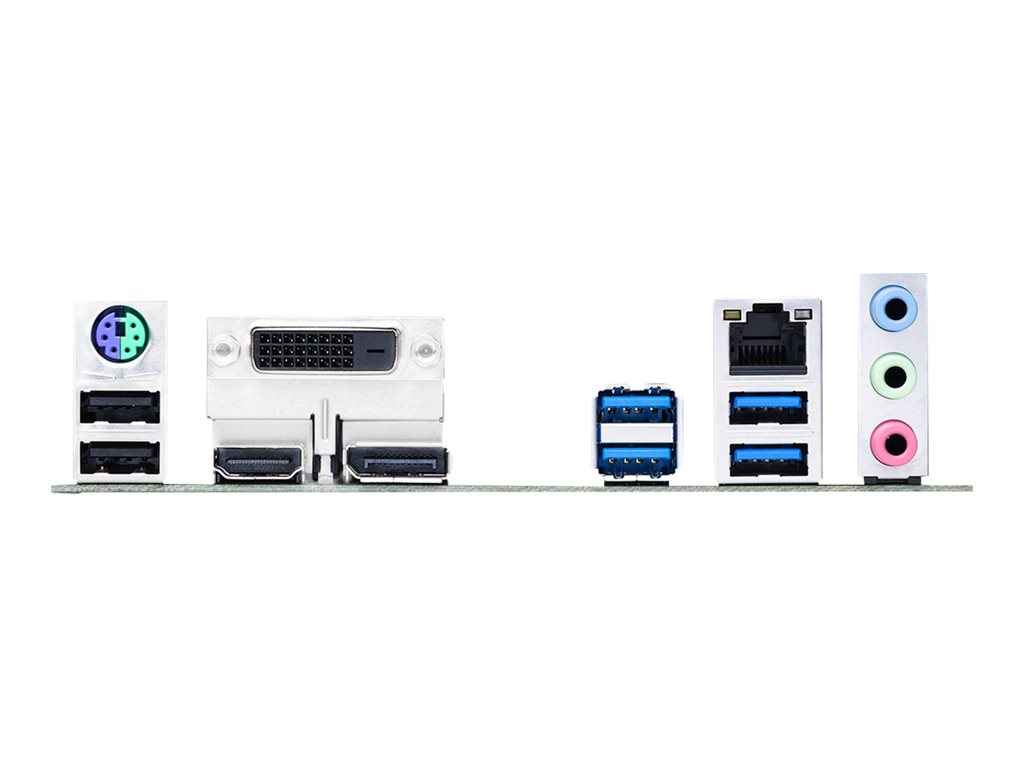

Interface: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x DVI ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 1 x LAN (Gigabit Ethernet) |
Interne interfaces: | 4 x USB 2.0 - intern stik ¦ 2 x USB 3.2 Gen 1 - intern stik ¦ 1 x seriel - intern stik ¦ 1 x audio - intern stik |
Strømkontakter: | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
Egenskaber | |
BIOS-type (Basic Input/Output System): | AMI |
BIOS-egenskaber: | UEFI BIOS, ASUS EZ Flash 3 |
Sov/ Vågn: | Aktivering af LAN (wake on LAN = WOL) |
Hardware egenskaber: | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Extreme Hukommelses Profil (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+ |
Diverse | |
Udstyr inkluderet: | 1 x M.2 skrue, I/O-bagdække, TUF-mærkater, 1 x M.2 gummipakke |
Medfølgende ledninger: | 2 x Seriel ATA kabel |
Med software: | ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (60 dages prøvetid) |
Bredde: | 24.4 cm |
Dybde: | 24.4 cm |
TUF Gaming B460M-Plus distills essential elements of an advanced platform and combines them with game-ready features and proven durability. Engineered with powerful components, an advanced power solution and outstanding cooling, this motherboard delivers rock-solid performance with unwavering gaming stability.
- Intel LGA socket: ready for powerful processors
- Enhanced power solution: 6+1+1 power stages
- TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM, M.2 and PCH heatsinks
- Made for online gaming: TUF LANGuard and Turbo LAN technology
- Pristine audio quality with unprecedented signal-to-noise ratio
- Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
De tekniske detaljer kommer fra 3. part. edgemo tager forbehold for fejl.
