Printere & POSASUS PRIME H310M-K R2.0 - motherboard - micro ATX - LGA1151 Socket - H310
SKU 90MB0Z30-M0EAY0
| Produktbeskrivelse: | ASUS PRIME H310M-K R2.0 - bundkort - micro-ATX - LGA1151 Socket - H310 |
| Produkttype: | Bundkort - micro-ATX |
| Chipsættype: | Intel H310 |
| Processor-socket: | 1 x LGA1151 Socket |
| Kompatible processorer: | Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max RAM-størrelse: | 32 GB |
| RAM understøttet: | 2 DIMM slots - DDR4, ikke-ECC, ikke bufferet |
- Specifikationer
- Beskrivelse
| Generelt | |
| Produkttype: | Bundkort - micro-ATX |
| Chipsættype: | Intel H310 |
| Processor-socket: | LGA1151 Socket |
| Max antal processorer: | 1 |
| Kompatible processorer: | Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Understøttet RAM | |
| Maks. størrelse: | 32 GB |
| Teknologi: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Understøttet RAM-integritetskon: | Ikke-ECC |
| Registreret eller buffer: | Ikke bufferet |
| Egenskaber: | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Grafik | |
| Maks. allokeret RAM-størrelse: | 1 GB |
| Audio | |
| Type: | HD Audio (8-kanaler) |
| Audio codec: | Realtek ALC887 |
| Overensstemmelsesstandarder: | High Definition Audio |
| LAN | |
| Netværk controller: | Realtek RTL8111H |
| Netværks interfaces: | Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger: | 1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 |
| Grænseflade (lagring): | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA |

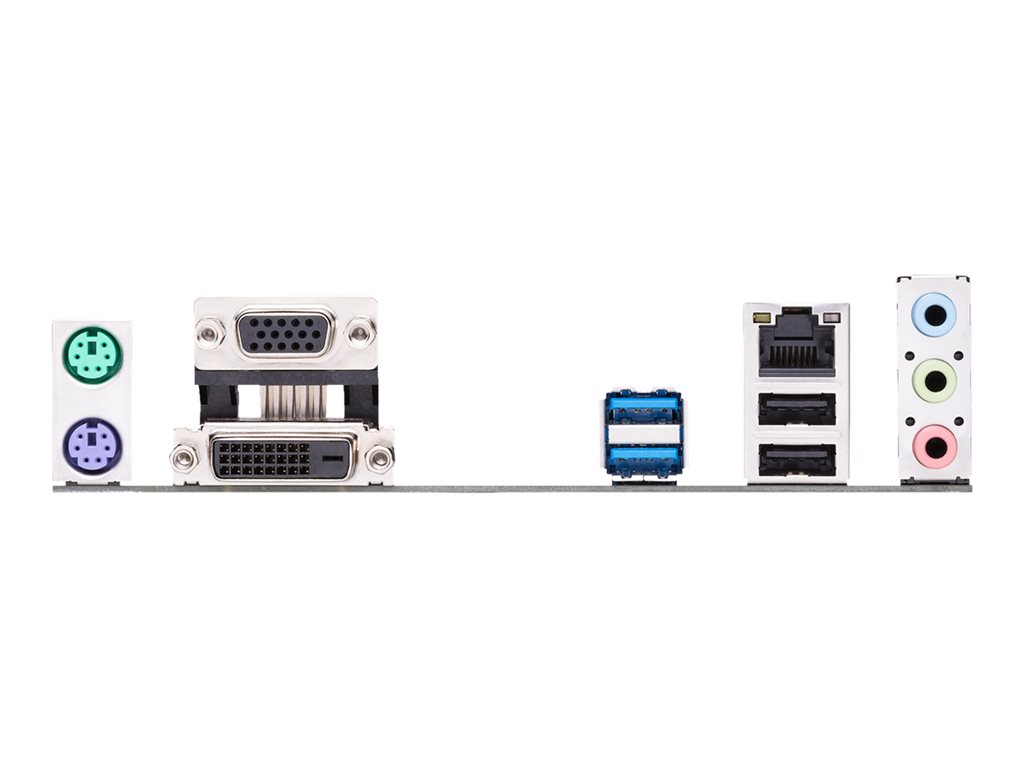

| Interface: | 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x PS/2-tastatur ¦ 1 x PS/2-mus |
| Interne interfaces: | 4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x seriel - intern stik ¦ 1 x højttaler - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter: | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| Egenskaber | |
| BIOS-type (Basic Input/Output System): | AMI |
| BIOS-egenskaber: | Flersproget BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6,1 support, SMBIOS 3,1 support |
| Sov/ Vågn: | Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem |
| Diverse | |
| Udstyr inkluderet: | I/O- bagvæg |
| Medfølgende ledninger: | 2 x Seriel ATA kabel |
| Med software: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Flash 3 |
| Bredde: | 22.6 cm |
| Dybde: | 18.5 cm |
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. You'll benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
- ASUS OptiMem: careful routing of traces and vias to preserve signal integrity for improved memory stability
- Fan Xpert: flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
- 5X Protection III: multiple hardware safeguards for all-round protection
De tekniske detaljer kommer fra 3. part. edgemo tager forbehold for fejl.
