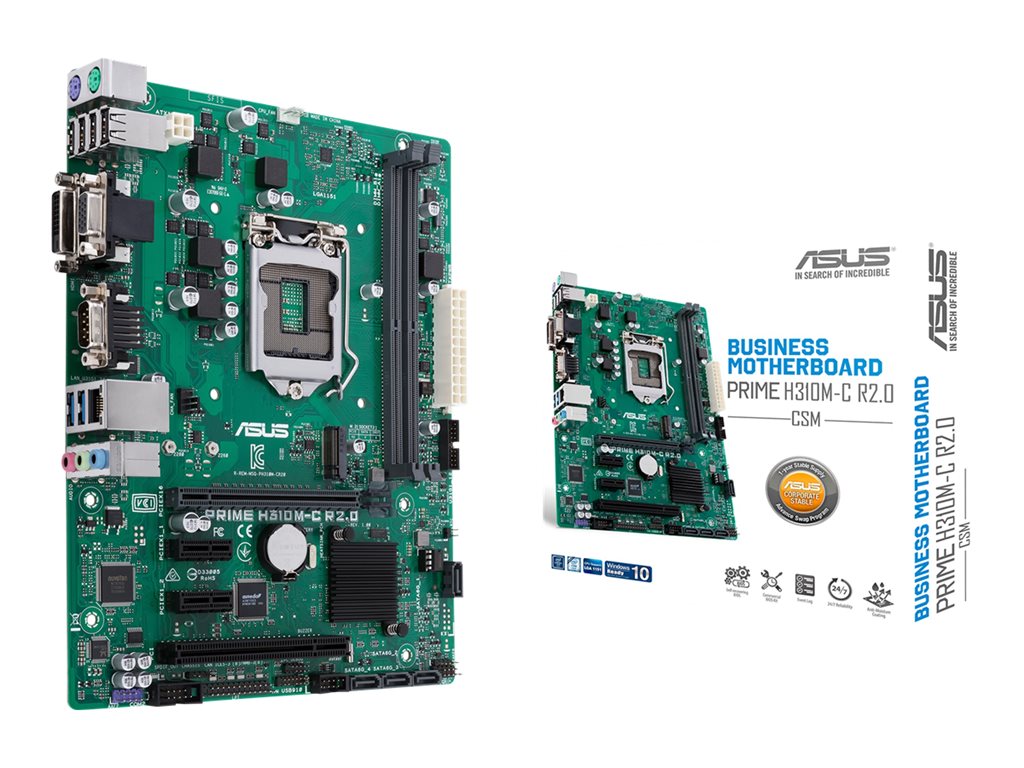

Printere & POSASUS PRIME H310M-C R2.0/CSM - motherboard - micro ATX - LGA1151 Socket - H310
SKU 90MB0ZM0-M0EAYC
| Produktbeskrivelse: | ASUS PRIME H310M-C R2.0/CSM - bundkort - micro-ATX - LGA1151 Socket - H310 |
| Produkttype: | Bundkort - micro-ATX |
| Chipsættype: | Intel H310 |
| Processor-socket: | 1 x LGA1151 Socket |
| Kompatible processorer: | Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max RAM-størrelse: | 32 GB |
| RAM understøttet: | 2 DIMM slots - DDR4, ikke-ECC, ikke bufferet |
- Specifikationer
- Beskrivelse
| Generelt | |
| Produkttype: | Bundkort - micro-ATX |
| Chipsættype: | Intel H310 |
| Processor-socket: | LGA1151 Socket |
| Max antal processorer: | 1 |
| Kompatible processorer: | Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Understøttet RAM | |
| Maks. størrelse: | 32 GB |
| Teknologi: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Understøttet RAM-integritetskon: | Ikke-ECC |
| Registreret eller buffer: | Ikke bufferet |
| Egenskaber: | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Grafik | |
| Maks. allokeret RAM-størrelse: | 1 GB |
| Audio | |
| Type: | HD Audio (8-kanaler) |
| Audio codec: | Realtek ALC887 |
| Overensstemmelsesstandarder: | High Definition Audio |
| LAN | |
| Netværk controller: | Realtek RTL8111H |
| Netværks interfaces: | Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger: | 1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCI |
| Grænseflade (lagring): | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA ¦ SATA-600 / PCIe -stikforbindelser: 1 x M.2 |
| Interface: | 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x seriel ¦ 1 x PS/2-tastatur ¦ 1 x PS/2-mus |
| Interne interfaces: | 2 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 2 x seriel - intern stik ¦ 1 x audio - intern stik ¦ 1 x parallel - intern stik ¦ 1 x højttaler - intern stik |
| Strømkontakter: | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| Egenskaber | |
| BIOS-type (Basic Input/Output System): | AMI |
| BIOS-egenskaber: | Flersproget BIOS, UEFI BIOS, ACPI 6,1 support, SMBIOS 3,1 support |
| Sov/ Vågn: | Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber: | Jack retasking, audio jack detektions teknologi, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Moistureproof PCB, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit |
| Diverse | |
| Udstyr inkluderet: | I/O- bagvæg, 1 x M.2 skrue |
| Medfølgende ledninger: | 2 x Seriel ATA kabel |
| Med software: | Drivers & Utilities, ASUS Watchdog Timer |
| Overensstemmelsesstandarder: | UL, FCC, Blue Angel Ecolabel, NIST SP800-147 |
| Bredde: | 24.4 cm |
| Dybde: | 19.3 cm |
This lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
De tekniske detaljer kommer fra 3. part. edgemo tager forbehold for fejl.
